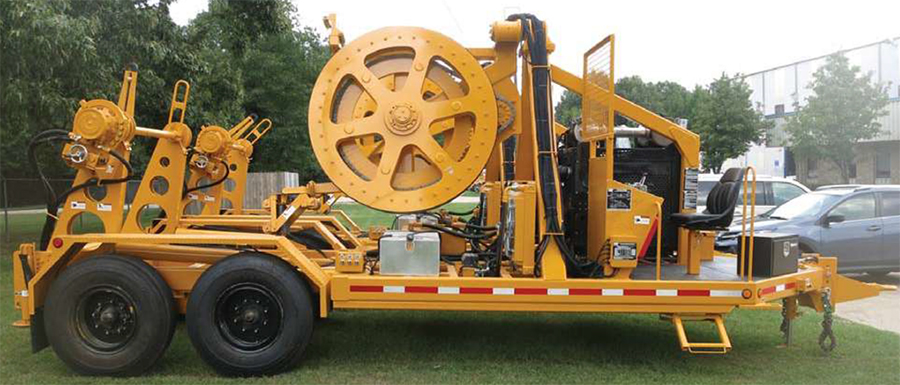

PTV60-54 Puller/Tensioner

This compact traction unit performs equally well as a puller or a tensioner and is ideal for reconductoring applications. Having the self-loading, powered reel winder as an integral part of the machine allows reels of conductor or pulling rope to be loaded and unloaded without a crane on the location.

Ability to operate equally well as a puller or a tensioner means that a unit can pull out old conductor, wind it on a scrap reel, unload it and tension out the new conductor all with one machine. For contractors or utility companies performing a wide variety of jobs, these units have unsurpassed versatility. Whether it’s stringing new conductor, reconductoring existing circuits and groundwire or wrecking out old conductors these combination units are ideal. The V-groove bullwheel permits easy handling of splicing sleeves and a wide range of conductor or rope diameters.

Conductor or pulling line is imbedded in the elastomer lined V-groove of the bullwheel. TSE’s unique hydraulic system allows the operator to preset the maximum pulling tension and provides infi nite linespeed and linepull control.

The machine design incorporates a pivoting bullwheel arrangement which automatically aligns the bullwheel with the point on the reel from which the conductor is being payed off . During the pulling mode the operator controls the bullwheel movement to levelwind the pulled cable onto the storage reel.

• Fully hydrostatic drive system
• Infi nitely variable speed and linepull control with overpull protection
• Spring applied, hydraulic released holding brakes
• Self loading rear mounted reel winder
• Oscillating bullwheel for minimal fl eet angle on conductor or rope
• Centrally located console for optimum visibility
• Tandem axle trailer mounted with electric brakes
• Hydraulic front and rear jacks
• Elastomer bullwheel segments

• Maximum continuous linepull: 5,000 lbs. @ 4MPH
• Maximum Intermittent linepull: 6,000 lbs.
• Linespeed: 0-4 MPH Variable
• Engine: 100 HP Diesel
• Bullwheel diameter: 54 inches
• Bottom of groove diameter: 48 inches
• Maximum reel size: 96” X 53”
• Maximum reel weight (highway): 11,000 lbs
• Maximum reel weight (jobsite): 16,000 lbs

• Unit Weight w/o reel: 9,500 lbs. approx.
• Tow eye weight w/o reel: 2,000 lbs. approx.
• Unit dimensions (approx.): 26’ 5/8”L, 8’ 1/4”W, 11’ H

PTV 60-54 Puller / Tensioner
