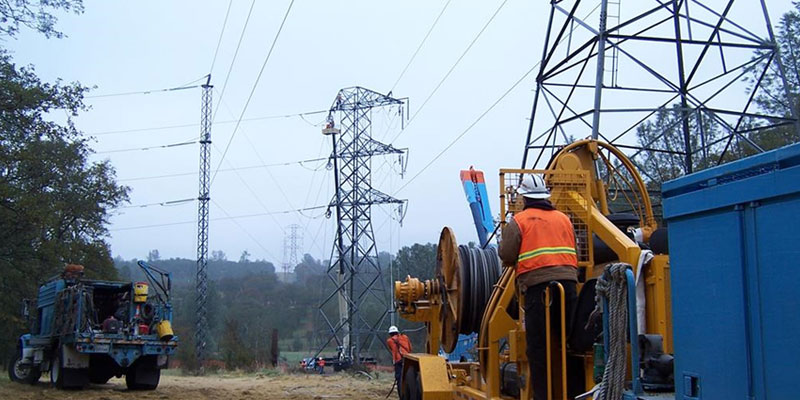

The Leader in Conductor Handling Equipment

America’s one-stop source for engineered tension stringing equipment.

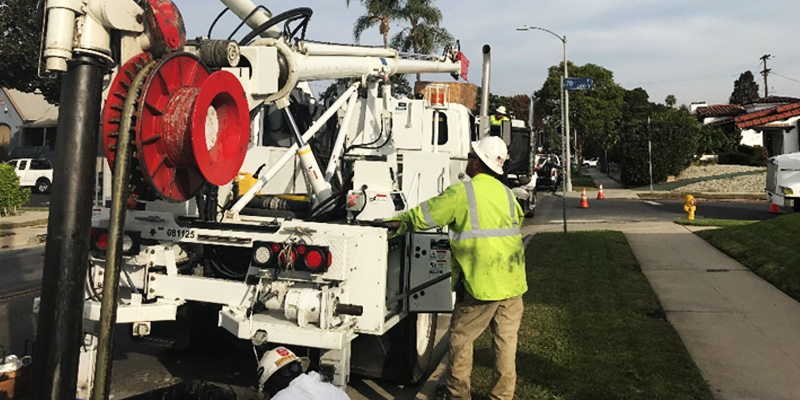

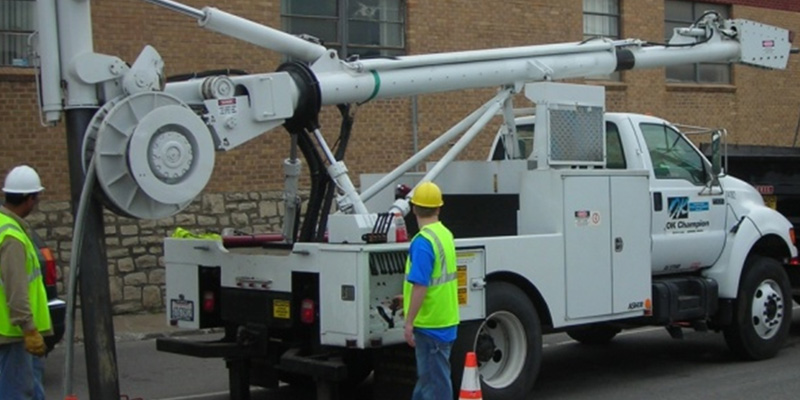

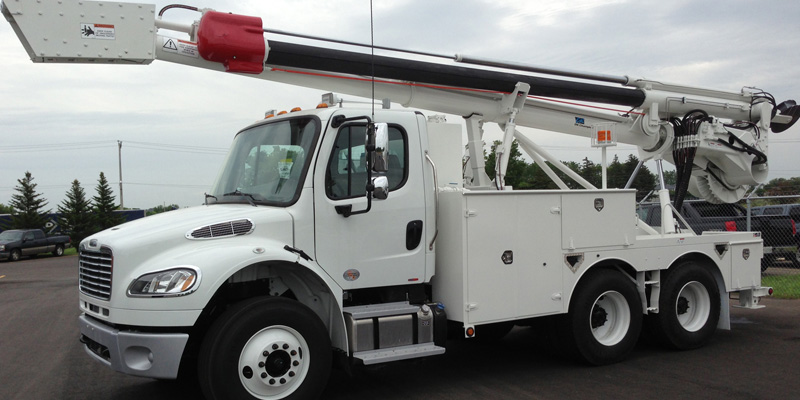

TSE designs and manufactures America’s most complete range of engineered pulling and tensioning equipment and accessories for every cable size, application, and environment. As well as custom engineering solutions to meet specific needs, we also provide engineered rodding equipment for removing old cable and installing new cable underground.

In-Command

In-Command System Graphic

TSE’s innovative In-Command system is a radio-operated system that sets the role of tensioner and puller automatically via remote transmission. The wireless communication network is controlled by a single skilled operator at the Puller to conduct the tension stringing process with an observer who can perform basic functions at the Tensioner.

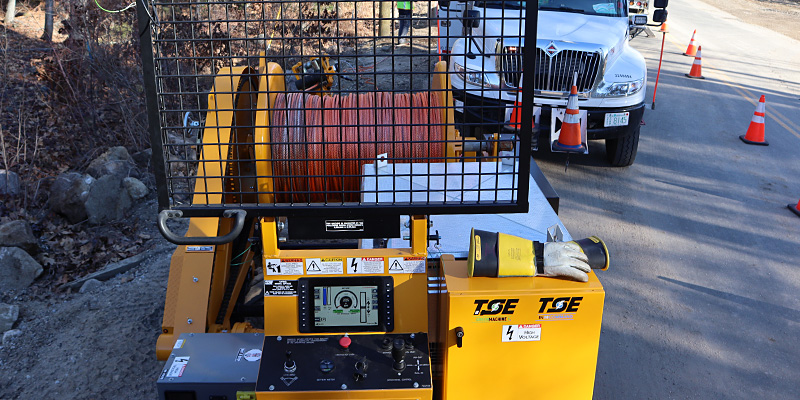

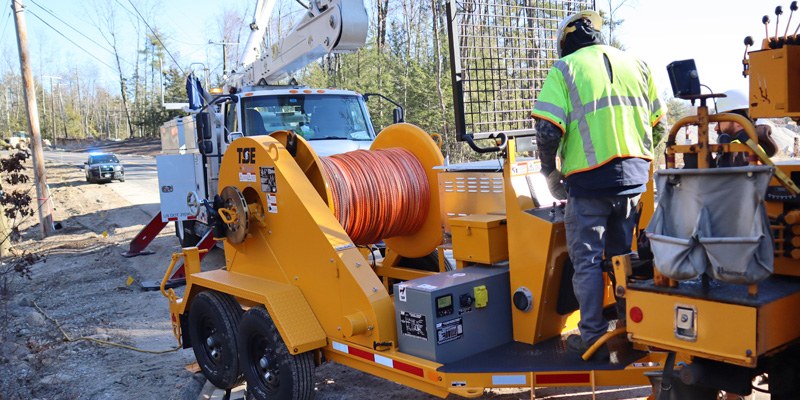

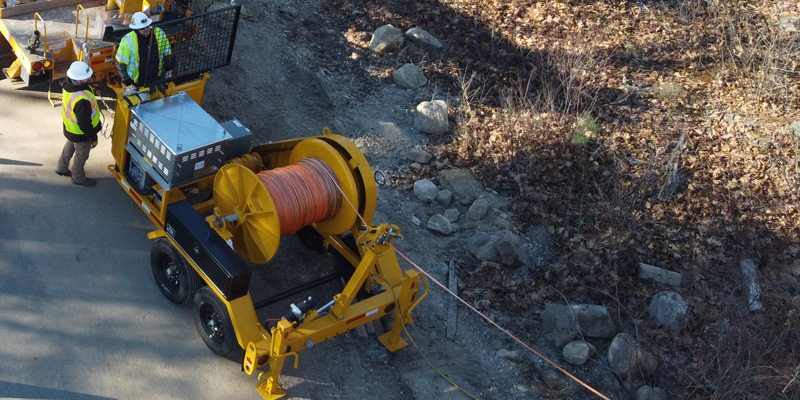

DPT40E Puller/Tensioner

DPT40E Electric Puller / Tensioner

FEATURES
• HMI - Color Operator Screen with Graphical Indicators
• Recharges Batteries when Tensioning
• E-Z Rider Operator Seat
• 16” Bronze Over Spin Brake Manual
• Overhead Levelwind with Speed/Length Indicator
• Operator’s Protective Screen
• Elevated Operator’s Position for Full View of Pulling Operation
• Drive Freewheeling Disconnect for Payout of Pulling Rope
• 110 or 220 Volt Charging System
• Quick Change Reel Shaft Removal
• Unit Sandblasted, Primed and Painted with Two Coats of Paint

OPERATOR CONTROLS:
• Direction Control Lever with Infinite Speed Adjustment and Center Lock
• Adjustable Pull/Tension Control with Linit if Preset Tension is Reached
• Holding Brake Apply/Release Control
• Levelwind Directional Control
• Permanently Engraved Operator’s Control Panel
• Direct Readout of Pulling Tension
• Direct Readout of Pulling Distance

PERFORMANCE:
• Continuous Torque Rating: 66,750 in.-lbs.
• Continuous Line Pull Rating: 4,000 lbs. with 6,000 ft. of 5/8” rope on pulling reel
• Speed: 0-5 mph with Infinite Speed Control

REEL CAPACITY:
• Maximum Reel Diameter: 72 in.
• Maximum Reel Weight: 6,000 lbs.
• Maximum Reel Width: 56 in.
• Shaft Diameter: 2 5/8”

ELECTRIC DRIVE SYSTEM:
• Battery: Lithium Battery Pack (96 Volt)
• Electric Motor: 110 ft. - lbs, 50 Horse Power, XV AC
• 110 Volt Charge Time: 17 Hours from 0% to Full Charge
• 220 Volt Charge Time: 8.5 Hours from 0% to Full Charge

TRAILER:
• Axles: Tandem with Leaf Spring Suspension
• Trailer Brakes: 12X2
• Tires: ST235/80R16
• GAWR: 14,000 lbs.
• GVWR: 15,400 lbs.
• Tow Hitch: 3 in. Pintle Eye with 4 Height Adjustments
• Front Jack: Manual Screw Type with Drop-Leg
• Trailer Lighting: 4 Light System

UNIT DIMENSIONS:
• Length: 16 ft. 9 in.
• Height: 6 ft. 2 in.
• Width: 7 ft. 5 in.
• Weight: 6,000 lbs.
• Basic Unit

DPT-40E Puller / Tensioner

Icon

DPT40E Electric Puller / Tensioner PDF

1 file(s) 1.44 MB
Download





    S660E Electric Rodder


    TSE International’s OK Champion Model S660E is an electrically driven continuous power rodder designed for heavy-duty rodding of telephone and power conduit, sanitary and storm sewer lines.

    TSE Introduces the Electric Power Rodder S660E

    The First Battery Electric Powered Rodder

    February 2022 – TSE International is an industry leader known for designing and manufacturing superior quality cable pulling and tensioning equipment for the utility industry.  OK Champion Power Rodders for the sewer, electric, and telecommunications industries are expertly manufactured by TSE.  TSE’s proven engineering expertise as the innovator in electric driven utility equipment has led to the development of the first electric Sewer/Duct Rodder.

    TSE began manufacturing the OK Champion S660E Battery Electric driven Power Rodder.  The quiet, emission-free power means the S660E can be used in peaceful neighborhoods without disturbing the residents or the busiest of streets without adding to the noise and pollution.

    In addition, operators can safely work and communicate without shouting over the roar of a diesel engine or smelling the fumes.

    The proven S660 Drive Head provides reliable performance and productivity equal to the OK Champion hydraulic driven units that have been the standard in the industry for over 50 years. The S660E ups the ante with state-of-the-art electronic controls which improve operator comfort and provide advanced diagnostics.  TSE has proven this technology with our Green Machines® which are revolutionizing the utility industry.

    Performance Features

    TSE International’s OK Champion Model S660E is an electrically driven continuous power rodder designed for heavy-duty rodding of telephone and power conduit, sanitary and storm sewer lines.

    Capitalizing on the proven design of the S660 drive head, the rodder is driven by battery powered electric motors. Noise and emissions are non-existent and maintenance expenditures are significantly reduced as the rodder no longer requires an engine or PTO to drive it.

    The rodder is capable of pushing continuous rod up to 1000’ without spinning and in extreme circumstances where plugging or misalignment of the duct or sewer has occurred, the rod can be rotated to a maximum distance of 1500’. Operator controls include forward and reverse action, clockwise and counterclockwise rotation, lateral movement and braking action with a LCD screen to display critical functions.

    STANDARD FEATURES:

    • Self-contained battery driven power source
    • OK Champion S660 Drive Head Skid mounted for customer installation
    • Eight hour battery capacity

    DRIVE SYSTEM:

    • Direct rod head drive with no chains or other mechanical power transmission devices Electric/hydraulic drive head with variable speed 35 hp electric motor

    • Rod drive head includes three pairs of drive rollers directly driven through pinion gears of two hydraulic motors with three other drive rolls mounted on stationary shafts and three opposing drive rollers mounted on adjustable shafts for wear compensation

    • Clamping force on the rod through the drive rolls is applied hydraulically with pressure proportional to the pulling or pushing force to eliminate excess wear in light rodding conditions, allowing maximum torque during heavy load conditions

    • Drive rolls rotate on radial thrust bearings and can be replaced without removing the drive head

    • Two speed drive motors are plumbed directly from a hydraulic swivel barrel with stainless steel tube type fittings and without the use of black pipe or flexible hoses

    SPECIFICATIONS

    • Rotation Speed: 0 to 175 rpm
    • Rod Pulling Force: 3,500 lbs @ 200 fpm
    • 8,000 lbs @ 100 fpm
    • Capacity for 2,200’ of .375” diameter rod (.393” and .461” rod available upon request)

    BATTERY SYSTEM:

    • 96 Volt - 200Ah battery with controller
    • Eight hour battery capacity with intermittent use 200Ah Capacity – 19.2 kWh energy
    • 350 Amp continuous – 33.6 kW continuous

    CONTROLS:

    All controls and instruments are located in a single control panel at the rear passenger side of the skid.

    Controls and instrumentation include:
    • HMI screen replaces gauges
    • Single unitized control handle for controlling rod movement
    • Battery meter
    • Rod drive and rotation force readout
    • Force controls: lateral rod and rotation rod control
    • Rod footage readout, self-canceling and accumulative
    • Automatic rodding mode - lockout available
    • E-stop

    Icon

    660E Electric Rodder PDF

    1 file(s) 1.56 MB
    Download






      Products

      TSE International provides electric utilities and their contractors worldwide with the widest range of tension stringing solutions for both aerial and underground projects in electric transmission and communications.
