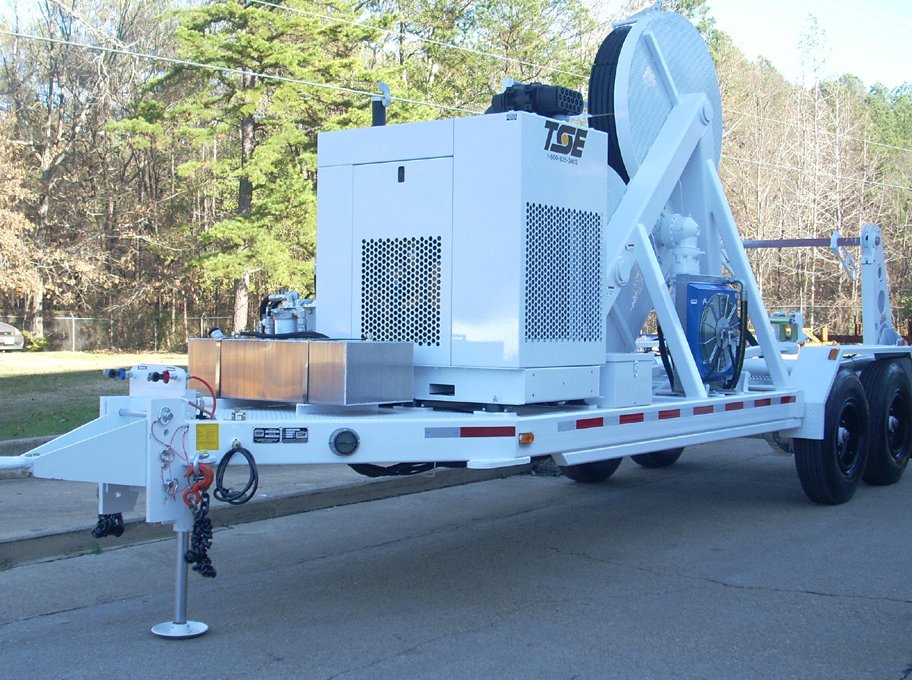

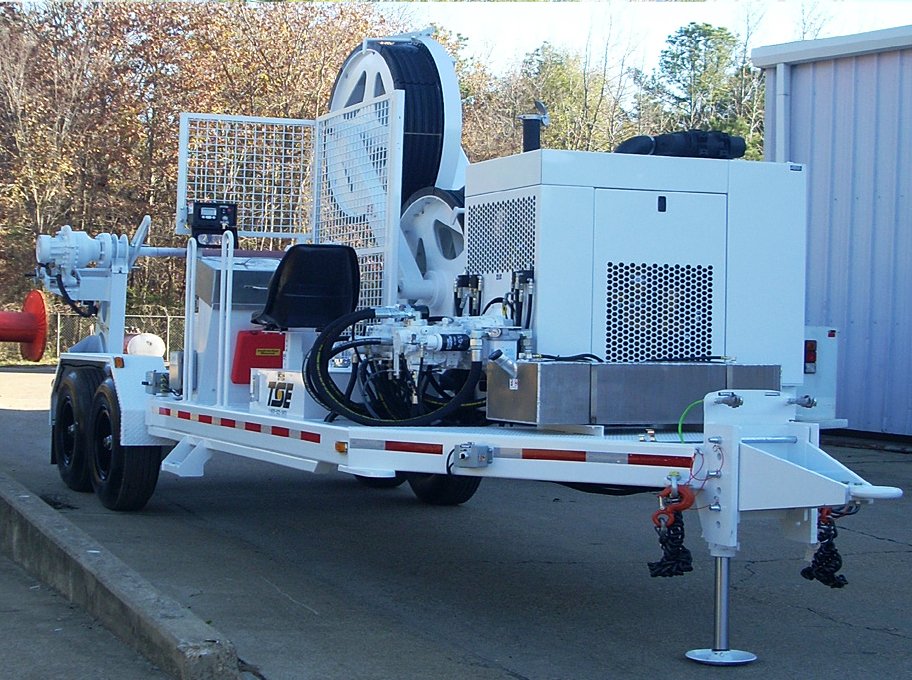

BWPT 50-36 Puller / Tensioner

STANDARD FEATURES

• Infinitely variable speed control.
• Infinitely variable linepull control.
• Spring applied/hydraulic released brake.
• Adjustable overpull protection.
• Water cooled diesel engine.
• Replaceable urethane bullwheel lining segments.
• Integral reelwinder with hydraulic bronze disc brake for tensioning.
• Hydraulic boom type levelwind.
• Tandem axle trailer mounted.
• Electric actuated trailer brakes.
• One front and two rear manual jacks

SPECIFICATIONS

• Maximum linepull: 5,000 lbs.
• Maximum line speed: 2.5 mph.
• Bullwheel diameter: 36 inches
• Bullwheel grooves: 4 x 1.25 inches
• Engine Power: 60 HP
• Maximum reel weight: 6,000 lbs.
• Maximum reel diameter: 72 inches
• Maximum reel width: 44 inches

DIMENSIONS & WEIGHT

• Weight (approx): 6,500 lbs.
• Length (approx): 228 inches
• Width (approx): 88 inches
• Height (approx): 96 inches
