DP20-4E Electric Drum Puller

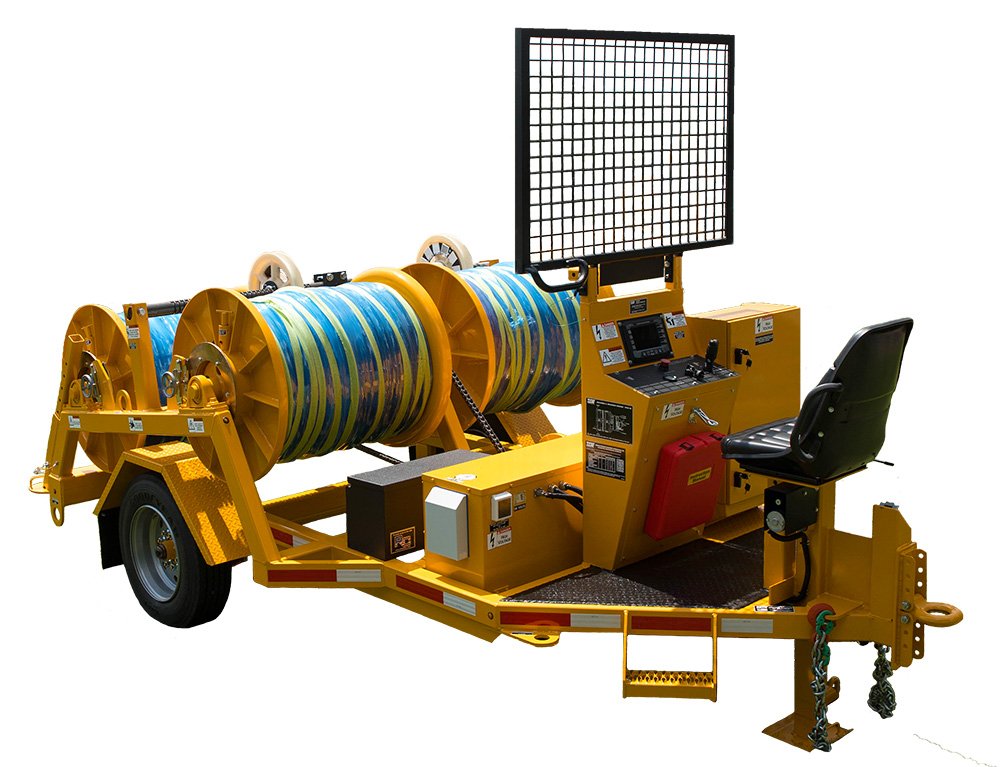

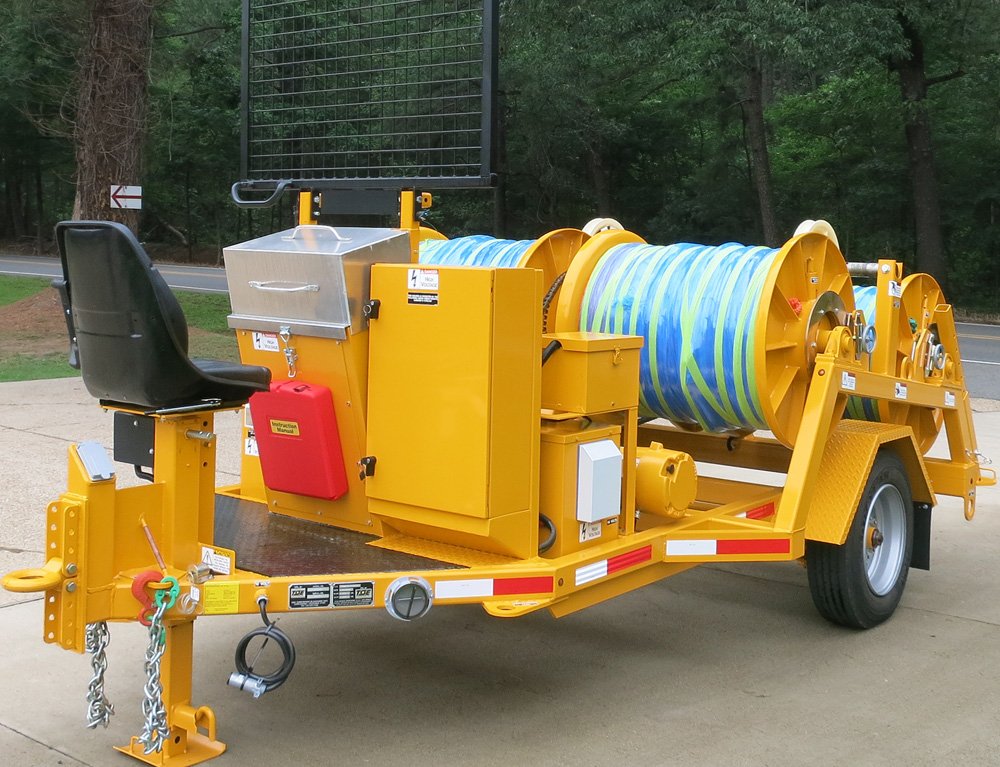

The TSE Model DP-20-4E is a versatile, hydraulically powered four drum puller designed for medium distribution stringing. It can also be used as a pilot line winder for heavier distribution. Power is transmitted from the engine to the reels through a common hydraulic drive train. A diamond leadscrew levelwind, accommodating one reel at a time, aids in an even wrap during pulling.

Each reel is equipped with a mechanical clutch to allow selective reel rotation and a mechanical brake to retard overspin. The maximum desired linepull can be preset prior to pulling so that the reel drive will stall if a restriction to the line occcurs avoiding damage to the conductor, towers and hardware.

The central operator’s console allows the operator to completely control the pulling operation with optimum visibilty of the pulling rope. Operator controls include linepull, linespeed, holding brake and engine controls.

STANDARD FEATURES

• 2,000 lb. linepull capacity on single full drum of rope
• Proven hydrostatic pulling system with a hydraulic oil cooler
• Four pulling reels, each with a capacity for 6,000’ of 1/2” diameter rope
• 35 hp water cooled diesel engine
• Single axle with leaf spring suspension
• Variable linespeed and linepull control
• Mechanical clutch and mechanical bronze brake for each reel
• Spring applied-hydraulic pressure released holding brake
• Central operator’s position for maximum safety and visibility
• Deluxe, adjustable operator’s seat and protective screen
• Engraved operator’s console
• Swing out automatic diamond leadscrew levelwind, adjustable for individual use with all four reels
• Steel lockable battery box
• Front and rear drop leg mechanical jacks

OPTIONAL EQUIPMENT

• Additional swing out automatic levelwind
• Lockable console cover
• Hydraulic front and/or rear jacks

DIMENSIONS & WEIGHT (APPROX.)

• Length: 15’
• Width: 8’
• Height: 6’-4 “
• Weight: 7,820 lbs. (with rope)
