DP50-4E

DP50-4H (Waterfall Style)

STANDARD EQUIPMENT

• Water-cooled, diesel engine.
• 12 volt electric starter, key ignition.
• 19-gallon fuel tank with level gauge.
• Heavy-duty 12 volt battery.
• Lockable steel battery box.

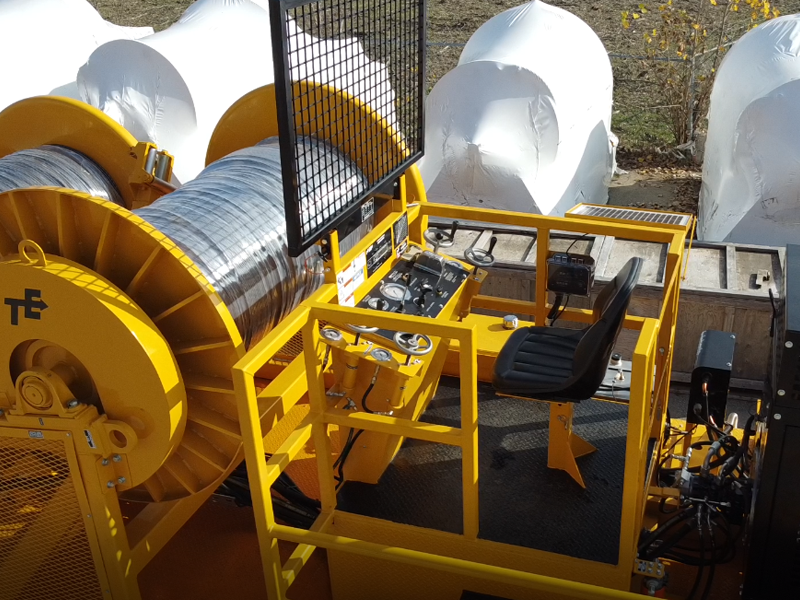

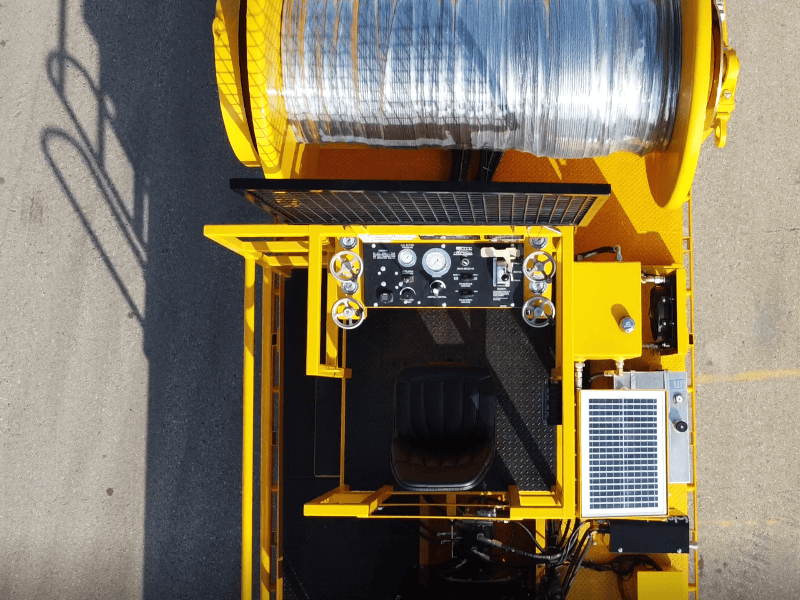

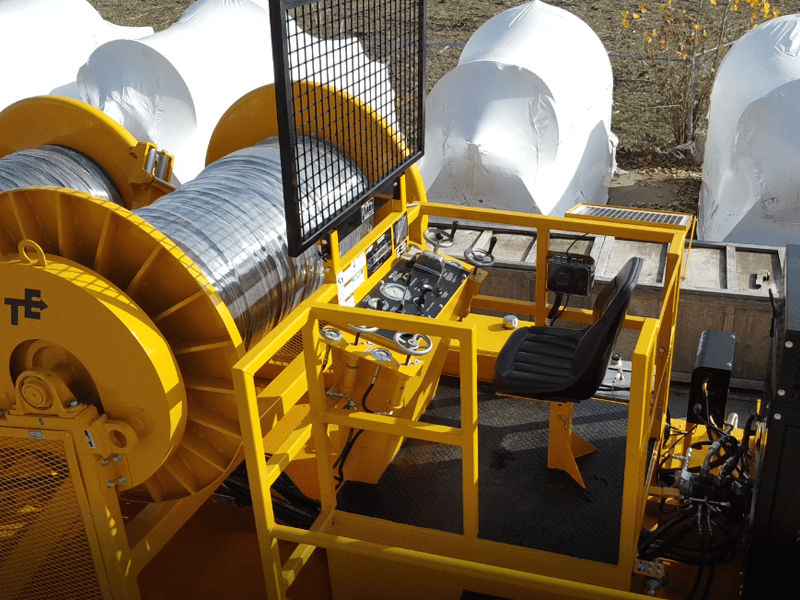

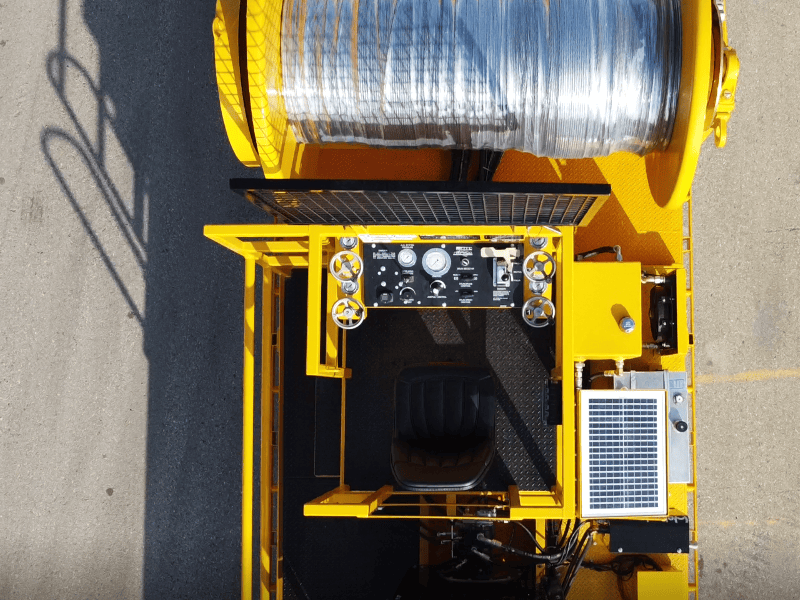

• Control console located in the center of the skid for optimum operator visibility and safety.
• Operator’s welded wire protective screen.
• Hydraulic reel drives incorporate a spring applied hydraulic released holding brake rated at 150% of the maximum ratted torque.
• 30-gallon hydraulic reservoir

SPECIFICATIONS

• Continuous Torque Rating: 130,000 in.-lbs.
• Intermittent Torque Rating: 140,000 in.-lbs.

DIMENSIONS & WEIGHT

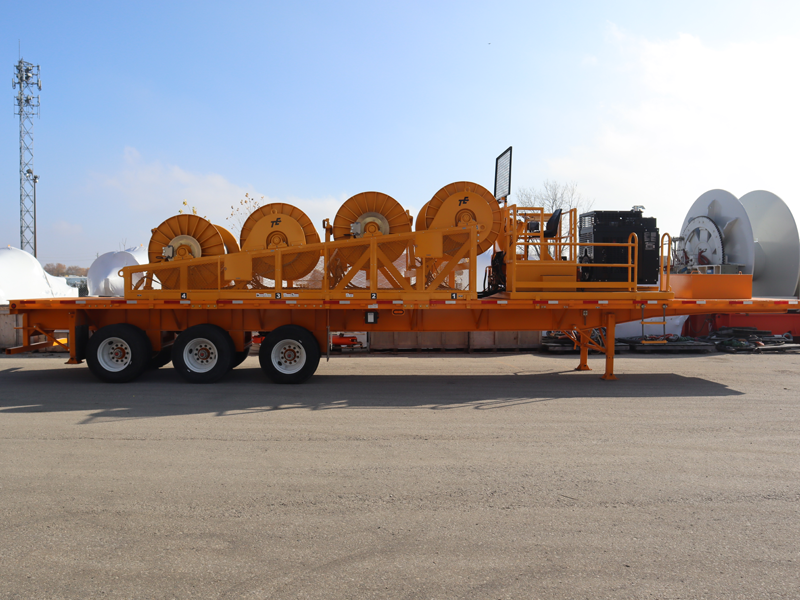

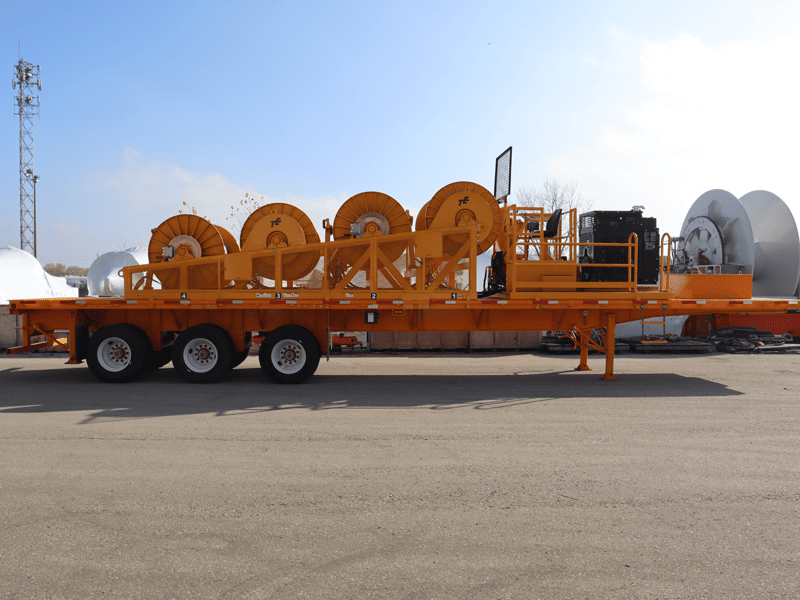

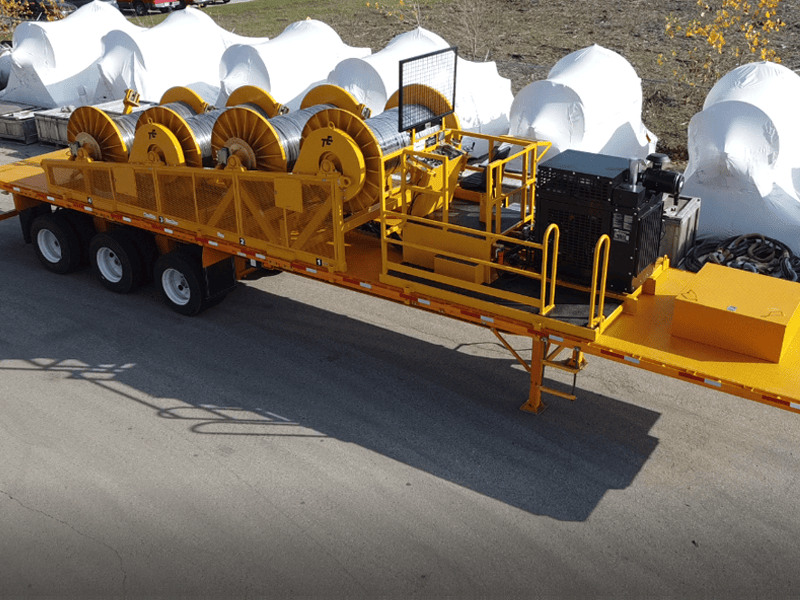

• Unit Length: 45’-0”
• Unit Width: 8’-6”
• Unit Height: 11’-9” (operator screen down)
• Unit Weight: 41,540 lbs. (approx.) (without rope)

REEL CAPACITY

• Reel Diameter: 54”
• Reel Width: 69 in. (between the flanges)
• Reel Core diameter: 12 3/4”
• Reel Shaft diameter: 3 1/2”
• Reels are easily removable for legal highway transport of vehicle.
