Pick-Up Boss System

The PICK-UP BOSS provides a completely self-contained hydraulic puller for distribution conductor stringing. It can be transported to the job site mounted on a standard pick-up, flatbed truck, or suitable trailer. The PICK-UP BOSS utilizes all standard options from our Poleboss System, including brake spindles, pulling rope, and reels.

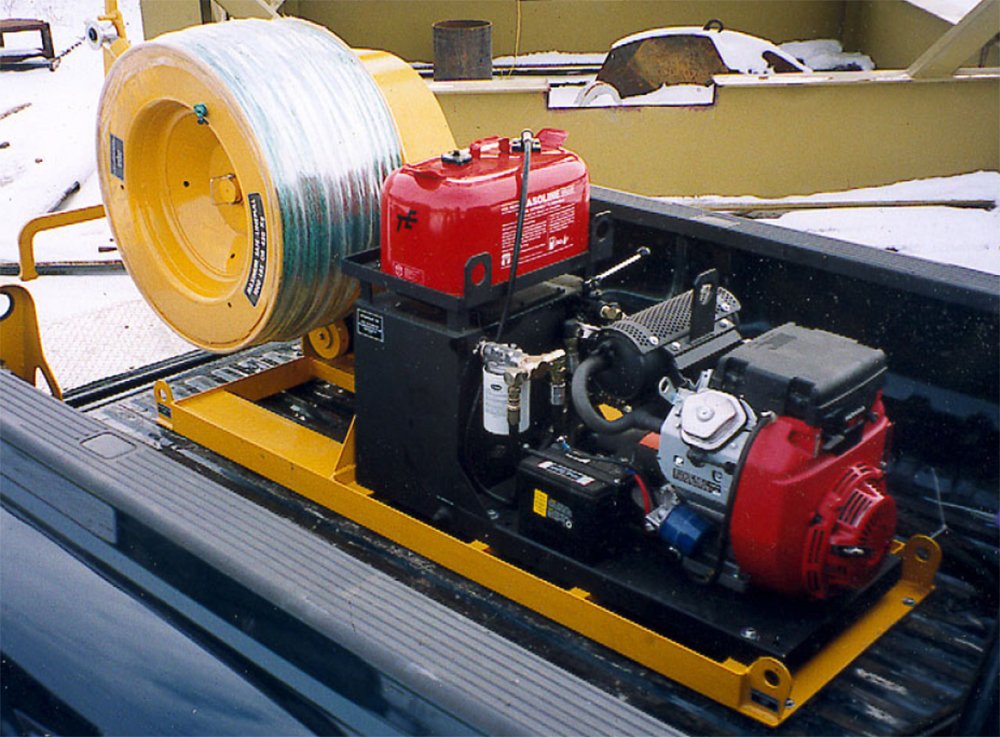

PICK-UP BOSS PULLER UNIT

• Performance 1,000 lbs.
• Linepull @ 120 m/min based on hydraulic supply of 15 gpm @ 2,000 psi.
• Precise metering spring to neutral control valve.
• Linepull limiting tension control valve.
• Hydraulic pressure gauge.
• Anti-rotation clutch.

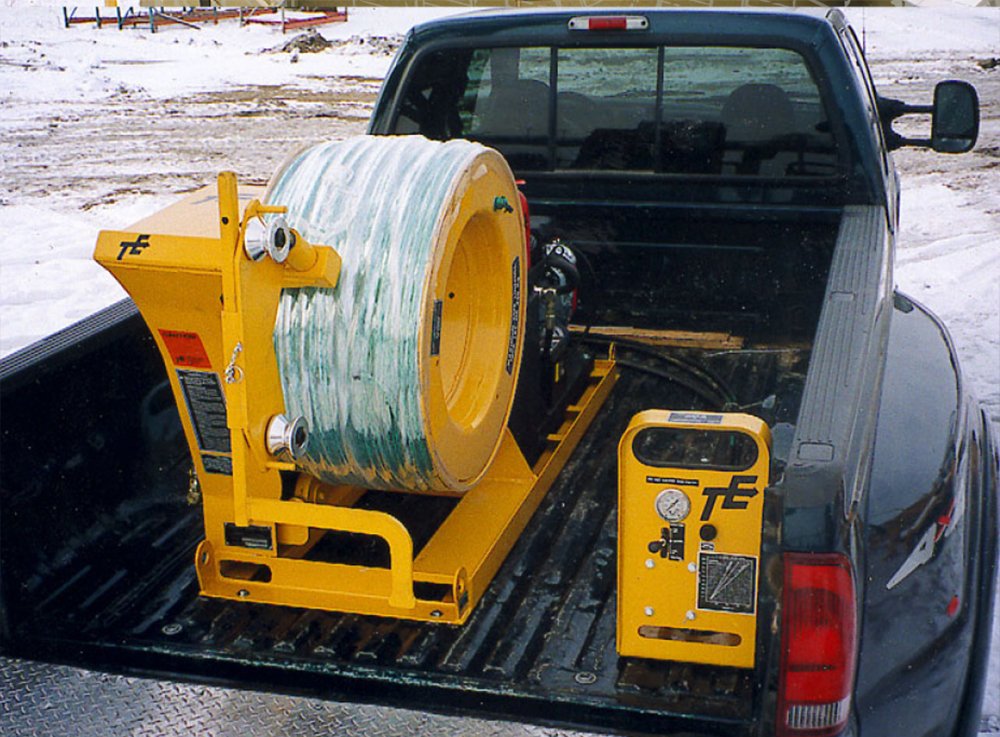

• Easily installed in back of 1/2 ton or larger truck.
• Manual rope levelwind.
• Integral self-contained hydraulic power pack.
• Reliable 18 H.P. Honda gasoline engine.

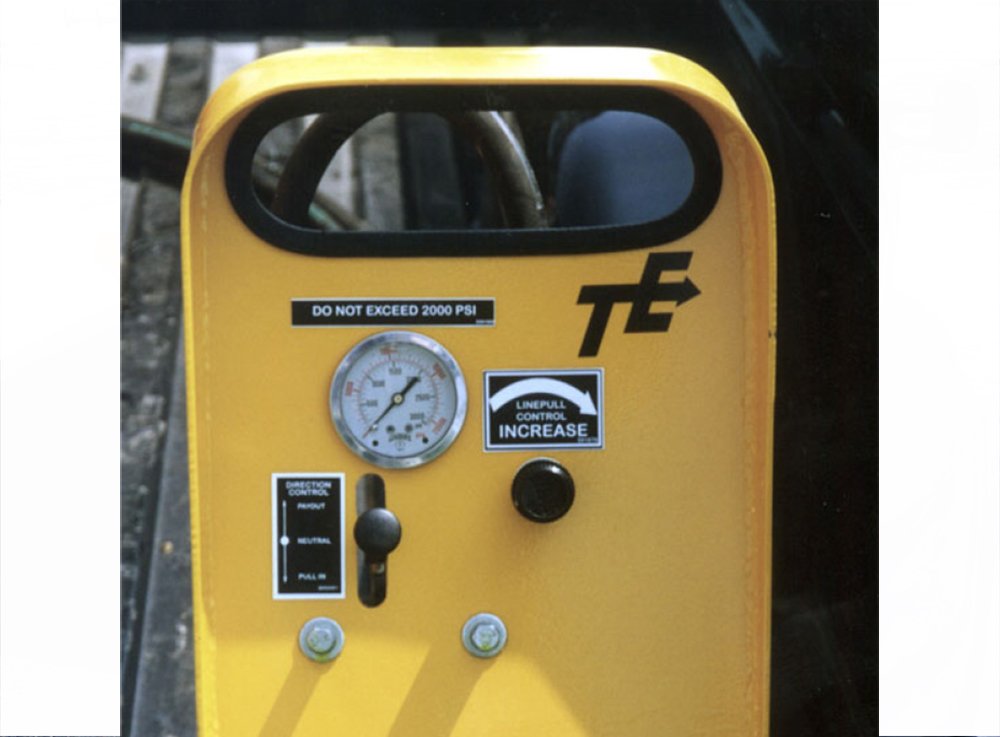

• Conveniently mounted control console.

DIMENSIONS & WEIGHT

• Unit Length: 7’-3”
• Unit Width: 2’-3”
• Unit Height: 3’-3”
• Unit Weight:

900 lbs. (approx.)

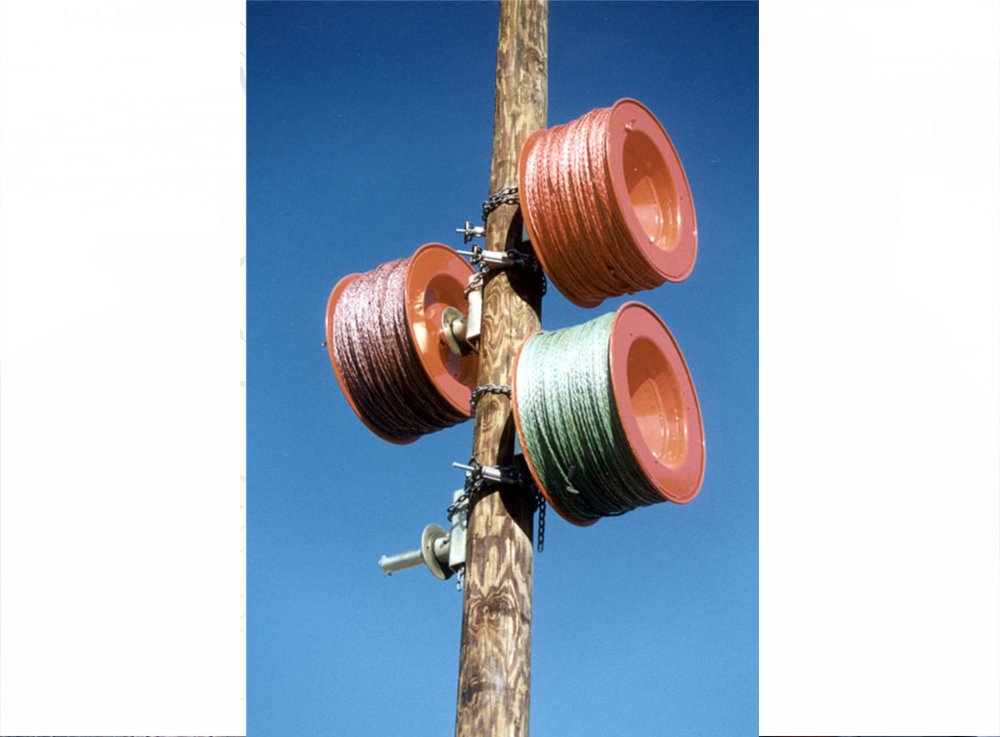

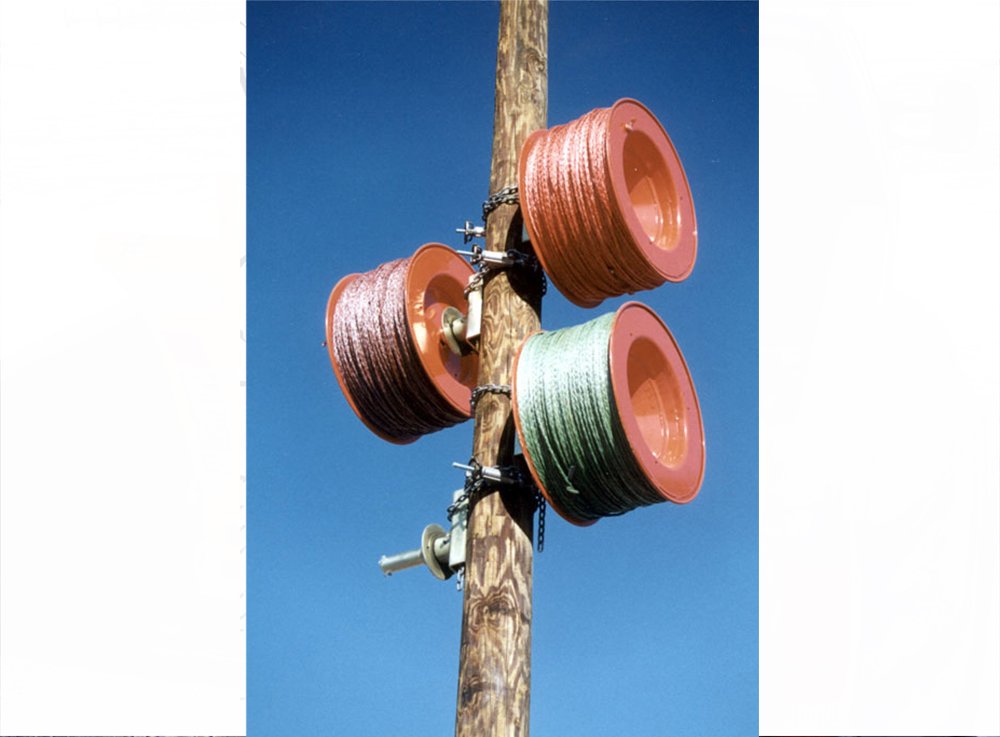

PAYOUT SPINDLE

• Galvanized steel frame construction.
• Hot-stick adjustable disc brake.
• 300 lbs. maximum braking force.
• Ratchet type web binder strap.
• Payout spindle weight 35 lbs.

ROPE AND REEL

• Reel capacity: 3,000 ft. of 3/8 inch rope.
• Recommended rope: 3,000 ft. of 3/8 inch rope.
• Reel weight: 119 lbs
